Gray scale diffuse reflectance standards

Categories: ,

Description

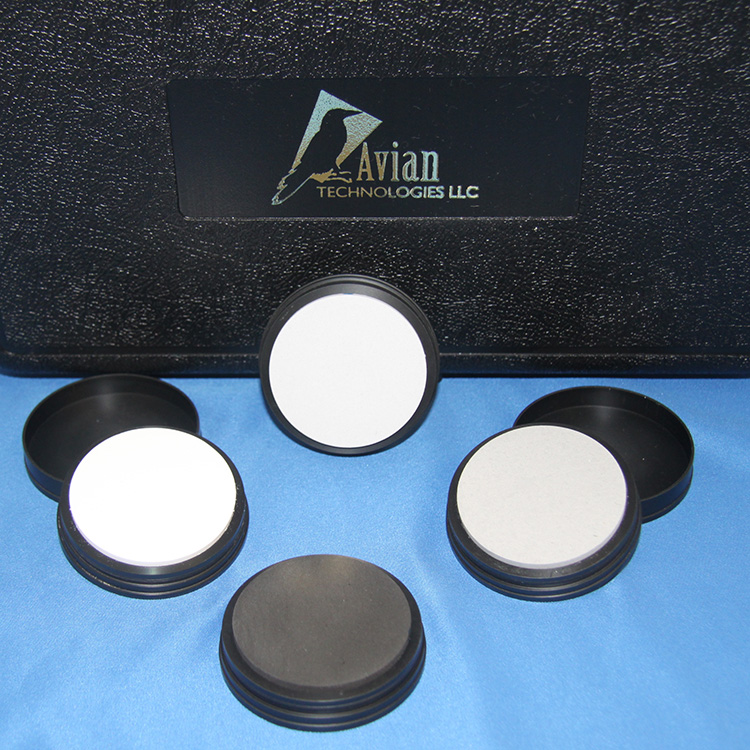

Gray scale standards are essential for establishing the photometric linearity of a reflectance spectrometer.

Avian Technologies Fluorilon™ gray scale standards allow the user to calibrate an instrument over a 2 decade range of reflectance, which is well over the typical range seen by a reflectance instrument. The materials are highly diffuse and have little angular dependence and almost no gloss; specular included and excluded geometries will show little difference in reflectance values.

Options/Specifications

*Tolerance is +/- 1% at 600 nm for 2%, 5%, and 99% standards. All others have a tolerance of +/- 2%.

[siteorigin_widget class=”WP_Widget_Media_Image”][/siteorigin_widget]

In addition to round standards, we offer square targets in the same material. Custom sizes & sets are also available; contact us to discuss your specific application.

Additional information

FGS-xx-01

1.25" diameter Fluorilon Gray Scale Standard
FGS-xx-02

2.00" diameter Fluorilon Gray Scale Standard
FSS-04-01

Set of 4 1.25" diameter Gray Scale Reflectance Standards;
2%, 99%, plus two of your choice
FSS-04-02

Set of 4 2.00" diameter Gray Scale Reflectance Standards;
2%, 99%, plus two of your choice
FSS-08-01

Set of 8 1.25" diameter Gray Scale Reflectance Standards;
2%, 5%, 10%, 20%, 40%, 60%, 80%, 99%
FSS-08-02

Set of 8 2.00" diameter Gray Scale Reflectance Standards;
2%, 5%, 10%, 20%, 40%, 60%, 80%, 99%
Custom

Custom products are our specialty!
Contact us for more information.
