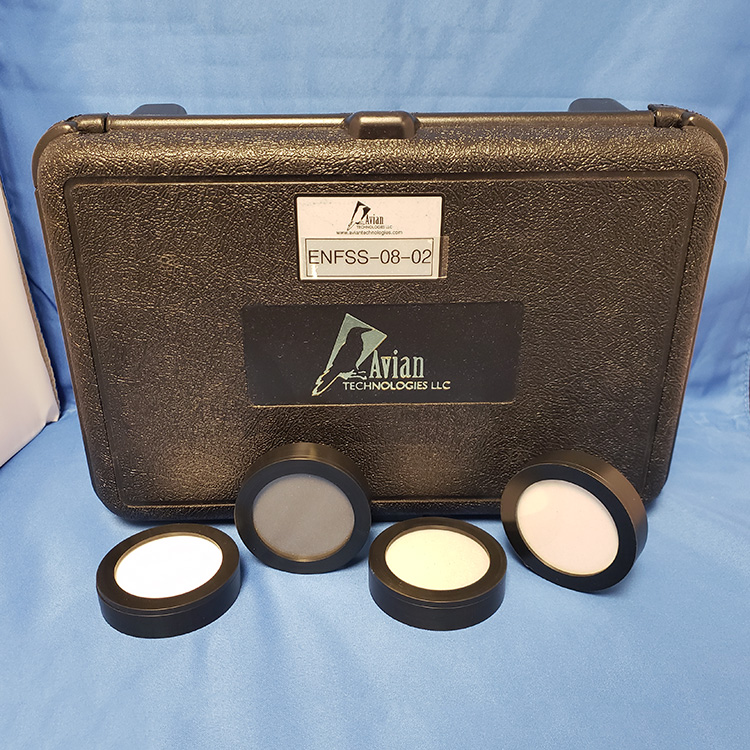

Encapsulated Gray Scale Standards

Avian Technologies offers encapsulated gray scale and wavelength standards designed to meet USP 1119 specifications. These standards are identical to our Fluorilon™ standards, except with the Fluorilon™ encased in a Delrin™ holder with a 2” diameter BK-7 window.

The size of both the gray scale and wavelength standards is identical to enable fixturing for most instruments designed to measure pharmaceutical on-line processes.The wavelength standard has the same components as the National Institute of Technology’s SRM-1920a, with a small amount of an inert, spectrally non-absorbing binder. Unlike sintered equivalents of SRM-1920a, this standard exhibits no peak shifting and is both durable and stable.

Each standard has a small, re-sealable port in the top to allow for conditioning in a controlled humidity environment.

Standards & targets are available individually, or in sets of four or eight.

Options & Specifications

*Tolerance is +/- 1% at 600 nm for 2%, 5%, and 99% standards. All others have a tolerance of +/- 2%.
